NTE R38-11A10-120K Repeat Cycle Timer Relay, DPDT, 10 Amp,120 VAC
| Part Number: R38-11A10-120K |
| Manufacturer: NTE Relay |
| UPC Number: 768249024675 |
Description

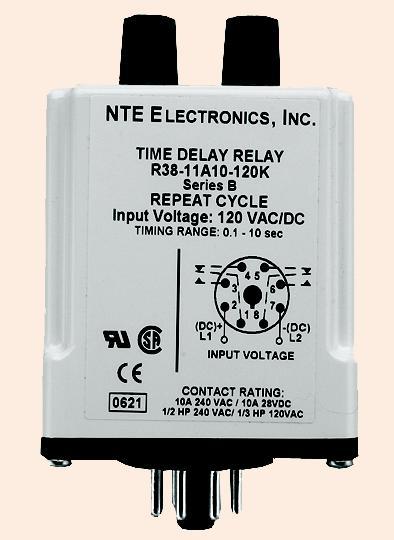

NTE R38-11A10-120K
Repeat Cycle Timer Relay, DPDT, 10 Amp,120 VAC
Features
Ãñ 0.1% Repeatability
8Pin Octal PlugIn
Knob with Calibrated Scales
Impact Proof Dust Cover
2Timing Ranges
IC Hybrid Circuitry for Timing
Contact
Rating: 10 Amp @ 120 VAC, 8 Amp @ 30 VDC
1/3 HP @ 120 VAC 1/2 @ 240 VAC
Life: 500,000 operations @ 120 VAC, 10A resistive
1,000,000 operations @ 120 VAC, 5A resistive
2,000,000 operations @ 120 VAC, 2A resistive
Timing
Timing adjustment ranges available:
On (T1) Off (T2)
0.1 to 10 sec 0.1 to 10 sec (Ksuffix)
3 to 300 sec 3 to 300 sec (Lsuffix)
RECYCLE TIMING The first delay period begins when input
voltage is applied. At the end of the first delay, or OFF period, the
internal relay pulls in, and the second delay, or ON period
begins.When the second delay period ends, the relay drops out. This
recycling sequence will continue until the removal of input voltage.
When input voltage is removed, the relay drops out.
