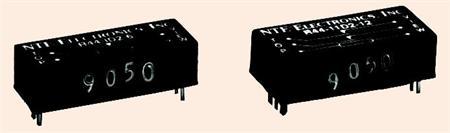

NTE R44-1D2-12 General Purpose SPST-NO, DC Reed Relay,12 VDC
| Part Number: R44-1D2-12 |
| Manufacturer: NTE Relay |
| UPC Number: 768249025474 |
Description
NTE R44-1D2-12
General Purpose SPST-NO, DC Reed Relay,12 VDC
Features
10 Watt Contact Rating
Standard .1 PC Board Spacing
Epoxy Sealed
Magnetic Shield
TTL & DTL Compatible
Contact
Rating: 0.5 Amp switching current max.
2.0 Amp carry current max
200 VDC switching volts, max.
Resistance: 200 milliohms max. initial
General Purpose SPST-NO, DC Reed Relay,12 VDC
Features
10 Watt Contact Rating
Standard .1 PC Board Spacing
Epoxy Sealed
Magnetic Shield
TTL & DTL Compatible
Contact
Rating: 0.5 Amp switching current max.
2.0 Amp carry current max
200 VDC switching volts, max.
Resistance: 200 milliohms max. initial
