Description

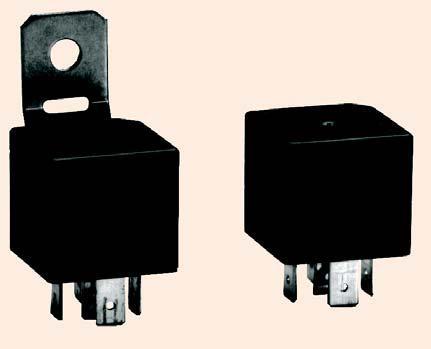

NTE R51-1D70-12 Heavy Duty Automotive/Marine Relay ,SPST-NO, 70 Amp,12 VDC
| Part Number: R51-1D70-12 |
| Manufacturer: NTE Relay |
| UPC Number: 768249027676 |
Description
NTE R51-1D70-12
Heavy Duty Automotive/Marine Relay ,SPST-NO, 70 Amp,12 VDC
Features
.250 (6.35mm) Quick Connect Terminals
Industry Standard Pinout
SPST & SPDT Versions
Flange Mount - F Suffix
PC Board Mount - P Suffix
Operational Characteristics
Timing Values . . . . . Operate Time: 20 mS max
Release Time: 20 mS max
Insulation Characteristics
Dielectric strength: 500 VRMS, between Contacts and Coil
Environmental Characteristics
Operating: -40°C to +125°C
Storage: -40°C to +155°C
Heavy Duty Automotive/Marine Relay ,SPST-NO, 70 Amp,12 VDC
Features
.250 (6.35mm) Quick Connect Terminals
Industry Standard Pinout
SPST & SPDT Versions
Flange Mount - F Suffix
PC Board Mount - P Suffix
Operational Characteristics
Timing Values . . . . . Operate Time: 20 mS max
Release Time: 20 mS max
Insulation Characteristics
Dielectric strength: 500 VRMS, between Contacts and Coil
Environmental Characteristics
Operating: -40°C to +125°C
Storage: -40°C to +155°C
