Description

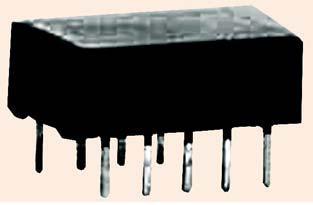

NTE R74-11D1-24SM Subminiature, Surface Mount, Low Signal Relay, DPDT, 1A, 24 VDC
| Part Number: R74-11D1-24SM |
| Manufacturer: NTE Relay |
| UPC Number: 768249052074 |
Description
NTE R74-11D1-24SM
Subminiature, Surface Mount, Low Signal Relay, DPDT, 1A, 24 VDC
Features
• Compact, with Low 5mm (.197”) Profile
• Low Power Consumption (140mW)
• Standard Pin Spacing (0.1”)
• PC Board Mount
• Surface Mount (“SM” Suffix)
Contact
Rating: 1 Amp
Material: Ag (Au clad)
Resistance: 50mΩ (Standard), 60mΩ (Surface Mount)
Subminiature, Surface Mount, Low Signal Relay, DPDT, 1A, 24 VDC
Features
• Compact, with Low 5mm (.197”) Profile
• Low Power Consumption (140mW)
• Standard Pin Spacing (0.1”)
• PC Board Mount
• Surface Mount (“SM” Suffix)
Contact
Rating: 1 Amp
Material: Ag (Au clad)
Resistance: 50mΩ (Standard), 60mΩ (Surface Mount)
